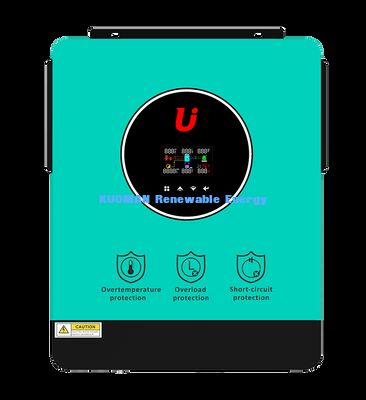

BSR IP65 6KW Hybrid Inverter with Parallel Operation & WiFi Monitoring

BSR IP65 6KW Hybrid Inverter with Parallel Operation & WiFi Monitoring

The BSSI-V-GN Series Hybrid Solar Inverter is your intelligent gateway to energy independence.

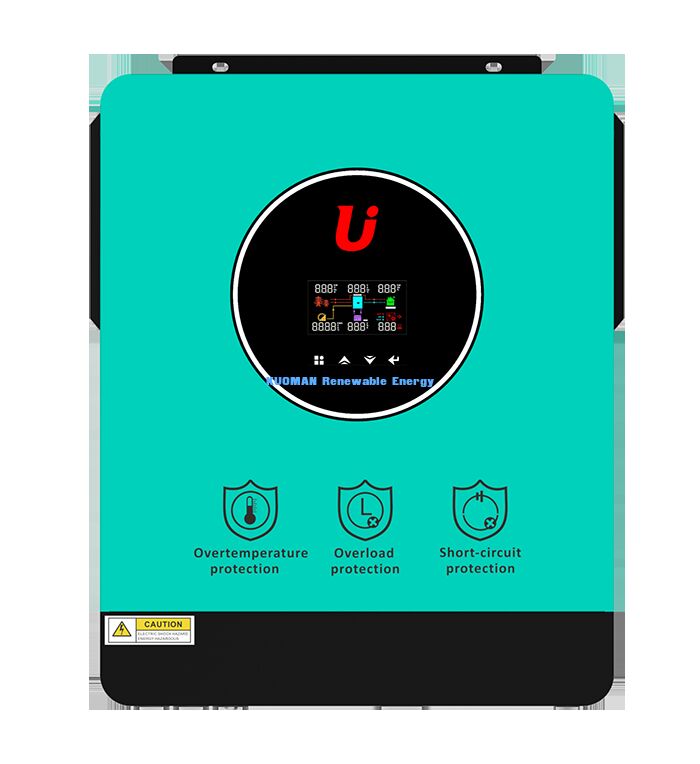

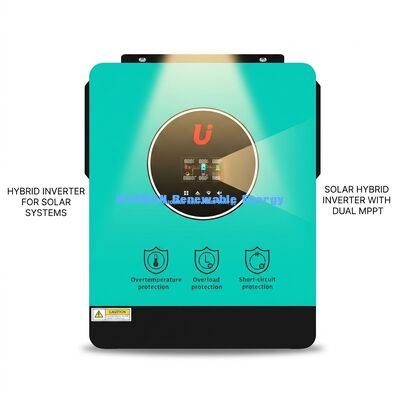

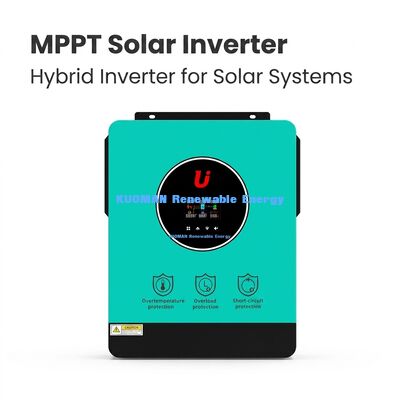

Combining a solar inverter, battery charger, and AC transfer switch in one sleek, teal-and-black unit, it manages power from solar panels, the grid, and batteries seamlessly.

Its prominent circular display provides real-time operational data, while robust safety features like over-temperature, overload, and short-circuit protection ensure reliable operation.

This inverter is the core component for a modern, resilient, and cost-saving solar energy system.

Hybrid Solar Inverter Specification:

• Models:​ BSSI-V-GN4200 (4200W/4200VA) & BSSI-V-GN6200 (6200W/6200VA)
• Phase:​ 1-phase
• Max PV Input:​ 6200W / 6500W
• Max Solar Charging Current:​ 120A
• Battery Voltage:​ 24V DC (4200 model) / 48V DC (6200 model)
• Grid-Tie & Off-Grid:​ Functions with or without the grid.
• MPPT Voltage Range:​ 60-450VDC, maximizing solar harvest.
• Output Waveform:​ Pure sine wave AC output, safe for all appliances.
• Efficiency:​ Up to 98% max conversion efficiency (DC/AC).
• Backup Power:​ Provides up to 4200W (main load) + secondary load power during outages.
• Communication:​ RS485/RS232/WIFI/GPRS/Lithium Battery compatibility for smart monitoring.
• Operating Temp:​ -10°C to 50°C.
• Certifications:​ Compliant with EN/IEC safety and EMC standards.
• Warranty:​ 2 years.

• Residential Homes:​ For households seeking to lower energy bills and gain backup power security.
• Small Businesses & Shops:​ To ensure operational continuity during power cuts and reduce operational costs.
• Off-Grid Cabins & Remote Locations:​ As a primary power source combined with solar panels and batteries.
• Areas with Unstable Grids:​ Provides constant, clean power protection against frequent blackouts or voltage fluctuations.
• EV Owners:​ Can be part of a system to offset home charging costs with solar energy.

​
